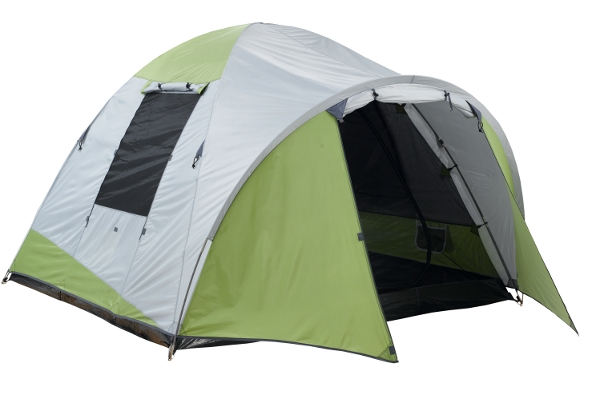

For truly reliable, all-weather protection, the folks at OZtrail don’t use just any old tent material.  UVTEX NANO 2000 is made from 100% polyester, which beats nylon for UV resistance, hands down!  They’ve enhanced this natural characteristic by adding their UVTEX treatment.  And because they want you to stay as comfortable as you are protected, the tent's inner lining is made of breathable 75-denier polyester and an ultra-fine mesh lining, keeping the insects out while allowing the air to circulate continuously.  Truly intelligent design, put to practical use!

Features:

• Front and rear doors
• Side windows
• Roomy front vestibule
• Pre-bent vestibule pole
• Short pole sections to fit into a backpack
• Front door mat
• Gear loft
• Organiser
• Power cord access zip
• Lantern loop and J hook
• Reflective webbing

Dimensions: 220cm x 240cm / 170cm centre height
Weight: approx. 5.5kg
Packed Dimensions: 65cm x 19cm x 19cm

A dome tent consists of 3 major elements - the Fly, the Inner and Floor, and the Poles.

I. The Flys

UXTex™ NANO 2000

• This fabric is made from 100% polyester. Polyester is far more UV resistant than nylon and we enhance this characteristic by adding our UVTEX treatment.

The OZtrail NANO Factor is the combination of these textile and construction elements:

• 75-Denier yarn for an even, low-profile weave, for the best waterproof coating adherence
• Waterproof and water repellent technologies
• High density 190-Thread count for maximum seam holding strength
• Double needle sewing
• Factory seam sealed seams
• The PosiBrace System reinforces the entire tent structure

II. Inner including the floor

Breathable 75-Denier polyester and No-See-Um-Mesh. The mesh keeps the insects out and allows air to flow through you tent. This and the breathable fabric reduces condensation by allowing the warm moist air inside the tent to readily escape into the void between the inner and the fly. The floor forms a waterproof tub a 'tub floor' as it runs part way up the wall of the tent also. This forms a waterproof overlap with the fly. The tub floor is heavy-duty PE with a 10 x 10 weave weighing 230grams per square metre.

III. Poles

The fiberglass DuraPlus Black Matrix poles are strong and flexible. For ease of use, we have added 'shock cord' (elastic cord) up the centre of the pole sets so they assemble and disassemble easily. Each style of tent has specific diameter poles ranging from 7.9mm to 11mm. The poles are tuned to the tent to encompass the particular curve and span of the poles in each tent design. Small tents have tighter curves and smaller spans than the larger tents, so they have small diameter poles than the large tents.

Owners Manual for Classic 4V Dome Tent from OZtrail

This guide includes product and parts, assembly instructions, figures and illustrations, disassembly instructions, folding instructions, tent warranty, important safety and care information, prolonging the life of your tent/shelter, understanding waterproofness, replacing shock-cord in tent poles, and zips.

Product Videos

Ask a Question about this Product

Ask a question

Warranty for OZtrail tents

OZtrail tents are warranted for a period of two years from date of purchase. The manufacturer agrees during the warranty period to repair any manufacturing defects in the product or, at its option, replace the product with another product or an equivalent product without cost to the owner for material or labour.

This warranty is subject to the original proof of purchase and the products being used in accordance with the instruction manual.

Important: This tent is to be assembled once before going camping to ensure that all parts are present and to become familiar with the assembly of the tent.

This warranty does not cover defects due to modification, accident, damage caused by vandalism, rusting, acts of nature or any other event beyond the control of the manufacturer.  Nor does this warranty cover scratching, scuffing, natural breakdown of materials that occur inevitably with extended use including Ultra Violet light damage and exhausted zippers or other cosmetic damage that may result from normal wear and tear. In addition, defects resulting from intentional damage, negligence or unreasonable use will void this warranty.

If the product is defective within the terms of this warranty, OZtrail will repair or replace defective parts at no cost to the purchaser.  Please note the shipping charges to and from the OZtrail warehouse or original place of purchase are not covered under warranty and are the responsibility of the purchaser.  OZtrail reserves the right to make substitutions to warranty claims if parts are unavailable or obsolete.

Your product is valuable and should be insured against loss or damage. During strong winds and storms collapse the tent flat onto the ground and seek refuge in your vehicle. Damage caused by storms and strong winds is not covered by warranty.

This warranty does not cover incidental expenses including property damage.

What is not covered by your warranty

OZtrail tents use waterproof and water repellent fabrics. However, with the addition of seams, zips and other desirable features a recreational tent will not be as waterproof as a car, house or other solid structures.

The following are common examples of how water can enter a tent:

Condensation - When warm moist air meets cooler air, condensation occurs. The tent/shelter fly forms an impermeable layer between the inside and outside conditions. The moisture inside the tent/shelter condenses on the fabric. Sometimes in cold conditions it appears that the fabric is leaking when in fact the cause is condensation. Condensation can be reduced if the tent/shelter is well ventilated.

Zips - All care is taken in the design to cover zips with rain flaps. At times wind driven rain could force water under the rain flaps and through the zips. To minimise this, make sure all doors and windows are closed with the rain flaps covering the zips.

Floor - If the ground is very wet or water pools under the floor, downward pressure of standing or kneeling on the floor could force water through the floor fabric. To prevent this, do not pitch the tent over hollows and make sure water drains away from the tent.

Structural Integrity - A perfectly pitched tent on perfectly flat ground is structurally strong and most waterproof. During prolonged periods of rain and wind it may be necessary to tighten guy lines and reset the tent pegs and attend to drainage around the tent. Sagging and incorrect pitching weakens the tent structure and could allow water to pool on the fly placing undue forces on the tent causing leaking and breakages.
